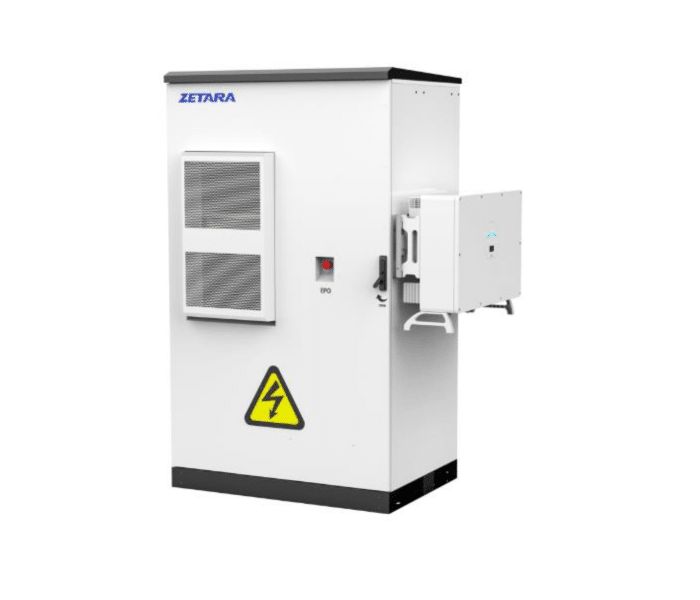

Zetara ZBox 100-HS 100kwh batterij met 50kw hybride omvormer

50 kW hybride omvormer, IP65
Zbox100, 100 kWh buitenkast, inclusief
batterijmodules, BMS, HVAC, brandbeveiliging, IP55,
stroomkabel en communicatiekabel.

Battery Parameter
Cell Type/Ah
LFP100
Rated Voltage(V)
512
Voltage Range(V)
448-576
Battery system configuration
2P160S
Battery Capacity(kWh)
102.4
ACOn-gridParameter
RatedCharge/DischargePower (kW)
50
RatedGridVoltageRange(V)
380-400
ApplicableGridFrequency (Hz)
50/60
MAX.. Output Current (A)
83
THDi
<3%
PVParameter
MAX.InputPower (kW)
75
MPPTVoltageRange (V)
200~850
General Parameter
Dimension:W*D*H (mm)
1560*900*2060
Weight(T)
2.45
Application Scenarios
Temporary Events or Construction Sites
Small Demonstration Bases
Energy Storage and Grid Stability Requirement Area
